Cooling system with direct expansion ( DX )

With the cooling system with direct expansion, the milk is cooled making the gas freon pass through the evaporator in direct contact with the milk.  The laser welded evaporator’s construction grants a quick cooling, efficient and without problem on a solid installation.



Thanks to the direct evaporation and to the correct milk agitation, the thermal exchange is optimal, granting a high cooling capacity.

Based on the combination of the milk cooling system with a traditional milking parlour or with a robotic milking system, two working methods are available.



Traditional milking: Setting the delayed start of the cooling unit, it will begin to work at 100% capacity on a continuous basis only when reaching the 10% volume of the tank.



Robotic milking:  If the volume of the milk to be cooled is  <10% it is necessary to install a soft start cooling (SSC), the cooling unit Eco-Cool works at regular intervals. If instead the volume of the milk to be cooled is  > 10%: the cooling unit Eco-cool will work at 100% on a continuous basis.

OM/DX TANK

OM/DX

Description



Characteristics

Horizontal tank with large laser welded evaporator and efficient circulation of the milk guarantees maximum cooling performance

Space-saving, ergonomic design, easy to clean

Constructed of stainless steel 18/10 – AISI 304, hermetically sealed, finished and well polished

Chassis with solid leg construction and adjustable feet (maximum 5% slope)

One-piece cover mounted on pneumatic springs, allowing easy opening and closing

CFC free polyurethane foam insulation

Standard NW 50 outlet with drain plug

The cooling tank is designed, manufactured and tested according to international standards

Tank conform EN 13732



Tank control and display

All electrical tank components 1 ~ 230V – 50Hz (other voltages / frequencies on request)

Water tight switchbox with well dimensioned ON/OFF switch and controls for the cooling unit

Milk temperature control with electronic operating unit PCV2-2

Digital temperature indication with large LED display

Two adjustable set points (3.2 °C and 4.5 °C)

Deep cooling possible



Cooling and agitation

Thanks to the free evaporation and proper mixing of the milk the heat exchange is optimal

Special evaporator design enables optimal heat transfer, a high cooling capacity is guaranteed

Efficient agitator mixes even small quantities of milk

Cooling pipes pre-mounted with thermostatic expansion valve(s)

Cooling unit delivered separately

Cleaning

The U-shape allows easy but thorough cleaning with a minimum of effort



Available options

Cooling unit incorporated

Butterfly valve NW50

Individual calibration with laminated volume chart

Automatic cleaning

REM/DX TANK

REM/DX

Description

Characteristics

Horizontal tank with laser welded efficient evaporator

Constructed of stainless steel 18/10 – AISI 304

Chassis with solid leg construction and adjustable feet (standard 2 % slope)

Flat manhole and swiveling cover with rubber seal

Detachable air vent

2 milk inlet openings, 80 mm (1 in the manhole cover, 1 at the back)

REM/DX 2100 and smaller: Tank outlet 50 mm, self-washing outlet with butterfly valve Ø 50/65 mm and road tanker connection NW 50

Tanks above 2100 liter: Tank outlet 80 mm, self-washing outlet with butterfly valve Ø 80 mm and road tanker connection NW 50 or 65

Other milk road tanker connections on request, e.g. SMS, DS, RJT or IDF

”Self-washing outlet” easy to upgrade (no welding). Increased second hand value.

All models above 2100 liters are fitted with a stainless-steel ladder

Tank conform EN 13732 – KEYMARK label

Tank control and display

All electrical tank components 1 ~ 230V – 50Hz (other voltages / frequencies on request)

Milk temperature control with operating unit iControl

Two adjustable set points (3.2 °C and 4.5 °C)

Deep cooling (1.9 °C)

Full automatic logging of cooling, agitation, cleaning and possible errors

Cooling and agitation

Thanks to the free evaporation and proper mixing of the milk the heat exchange is optimal.

A high cooling capacity is guaranteed

The number of agitator motors depends on the volume of the tank (see table tank dimensions)

Cooling pipes pre-mounted with thermostatic expansion valve(s)

Cleaning

2 automatic dosage cups for detergents

Automatic water level control for optimal filling and low water usage

High pressure dynamic Packo-ROTOJET system with spray balls in agitator blade(s)

Vertically mounted stainless-steel cleaning pump, no risk of freezing

Pump power depends on number of agitators: 1 agitator: 1.1 kW, 1 ~ 230V 50Hz 2 agitators: 1.5 kW, 1 ~ 230V 50Hz

Available options

Warning messages sent by SMS

Timer for manual cooling and cleaning

Dosing cup(s) for detergents

ECO-WASH cleaning

Tank adapted to AMS milking

OCULUS tank guard to monitor all tank functions

PACAP digital volume indication with LED display (see picture above)

Bottom filling

Flow meter alkaline detergent

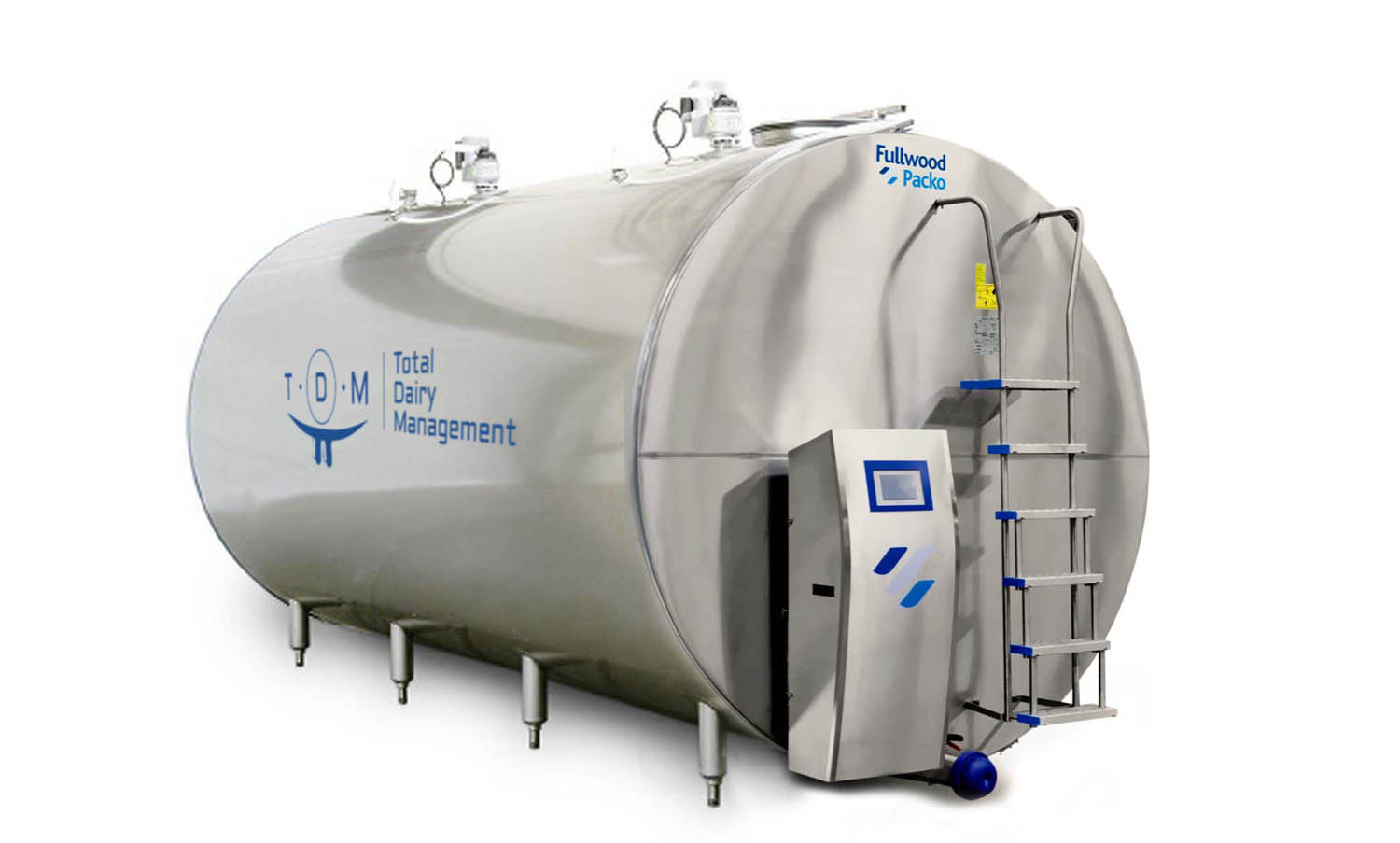

LEM/DX MODEL

LEM/DX

Description

Characteristics

Horizontal tank with laser welded efficient evaporator

Constructed of stainless steel 18/10 – AISI 304

Chassis with solid leg construction and adjustable feet (standard 2 % slope)

Flat manhole and swiveling cover with rubber seal

Detachable air vent

2 milk inlet openings, 80 mm (1 in the manhole cover, 1 at the back)

Tank outlet 80 mm, self-washing outlet with butterfly valve Ø 80 mm and road tanker connection NW 50 or 65 (other milk road tanker connections on request, e.g. SMS, DS, RJT or IDF)

”Self-washing outlet” easy to upgrade (no welding). Increased second hand value.

All models have a stainless-steel ladder

Tank conform EN 13732 standard – KEYMARK label



Tank control and display

All electrical tank components 1 ~ 230V – 50Hz (other voltages / frequencies on request)

Milk temperature control with operating unit iControl

Deep cooling (1.9 °C) ›Two adjustable set points (3.2 °C and 4.5 °C)

Full automatic logging of cooling, agitation, cleaning and possible errors



Cooling and agitation

Thanks to the free evaporation and proper mixing of the milk the heat exchange is optimal.

A high cooling capacity is guaranteed

The number of agitator motors depends on the volume of the tank (see table tank dimensions)

Cooling pipes pre-mounted with electronic injection ECO-TRONIC (tanks 17650 l)



Cleaning

2 automatic dosing pumps for detergents

Automatic water level control for optimal filling and low water usage

High pressure dynamic Packo-ROTOJET system with spray balls in agitator blade(s)

Vertically mounted stainless-steel cleaning pump, no risk of freezing

Pump power depends on number of agitators: 1 agitator: 1.1 kW, 1 ~ 230V 50Hz 2 & 3 agitators: 1.5 kW, 1 ~ 230V 50Hz



Available options

Warning messages sent by SMS

Timer for manual cooling and cleaning

ECO-WASH cleaning

Tank adapted to AMS milking

OCULUS tank guard to monitor all tank functions

PACAP digital volume indication with LED display

Electronic injection ECO-TRONIC (tanks <17650 l)

Bottom filling

Flowmeter alkaline detergent
