ICE WATER MILK COOLING SYSTEM  (IB & DIB)

The ice water milk cooling system, represents today the best milk cooling system in relation to the conservation of the milk quality. Thanks to the ice water temperature of 0.5-1°C, there is no risk of milk freezing into the tank and in addition, the possibility to collect the cooling energy in several hours allows the use of smaller cooling units with less power request.



Advantages of ice water milk cooling system in comparison with a traditional system:



  • The cooling from 35 to 10°C is 50% faster.
  • It is possible to cool also small quantities of milk without any freezing risk.
  • It allows the power management for the cooling in different times compared to the milking phase.
  • The ice can be rebuilt through the use of smaller compressors. The electric request is therefore lower
  • The energy’s use during the night allows the farmer to save money by using a lower electrical tariff.
  • The tank cleaning is easier thanks to the absence of frozen milk.
  • Milk can be collected anytime even during the milking phase when cooled immediately.
  • The tank can be repaired in every components, evaporator included.
INSTANT MILK COOLING

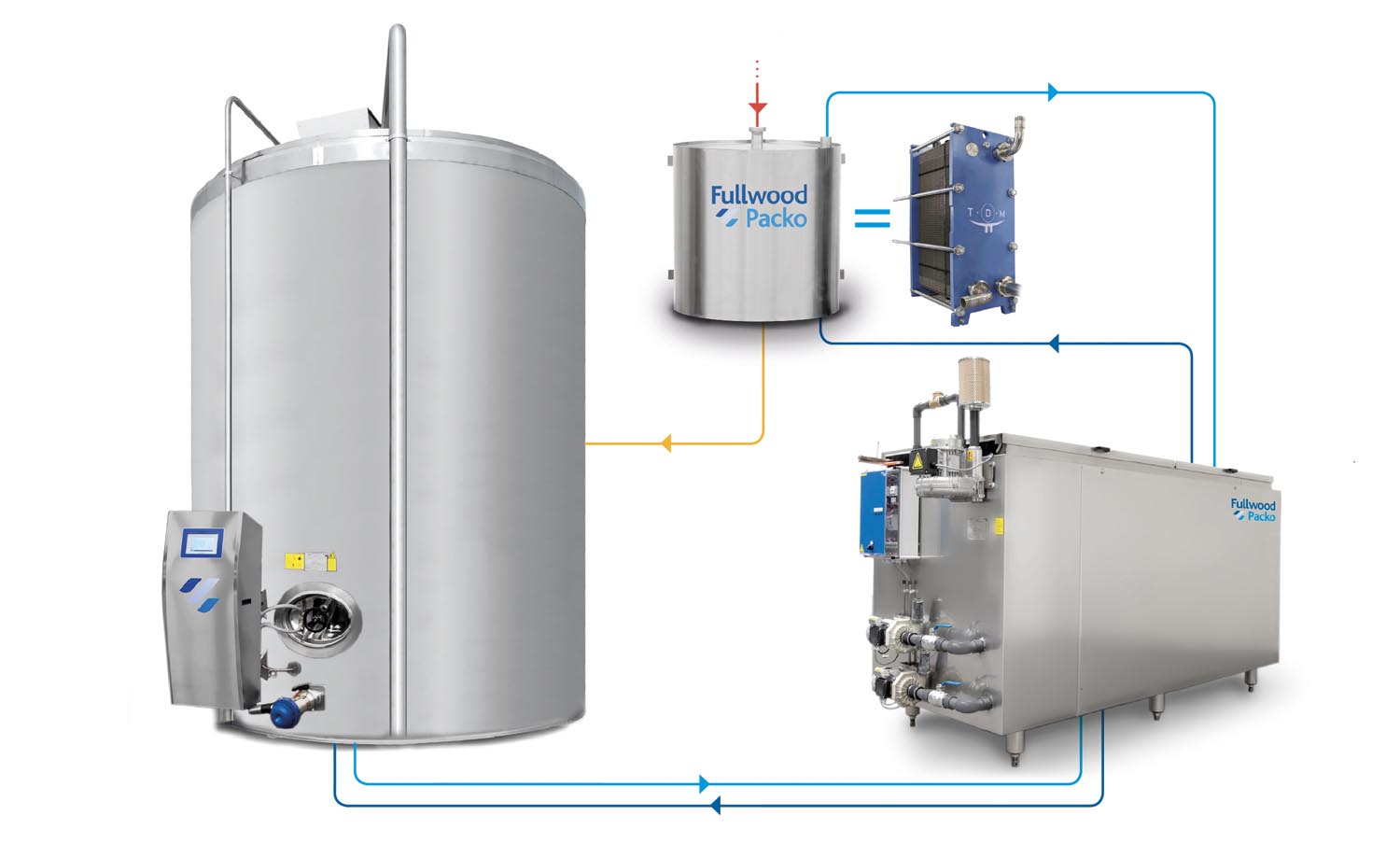

The ice water provided by the ice under the tank (IB) of from an ice builder (PIB), is pumped through a tubular pre-cooling or heat plate exchanger, in counter-current with the milk from the milking parlor.

Instant cooling causes an immediate decrease of the milk temperature to the storage temperature.



Advantages:
–  Milk is immediately cooled below the critical limit of 10° with ice water, stopping immediately the bacterial growth
– Mixing low temperature during on-goings milkings reduces drastically the possibility of bacterial growth



This type of milk cooling is applied also when we are in presence of the vertical milking tank (stainless steel silos ) In this case the milk is cooled with the cooling system and it is sent to the vertical tank already in storage temperature. The tank cannot cool the milk, but he has equipped a cooling system on 2/3 of its height with the aim of keeping the milk at the storage temperature, blocking a potential thermal increase for instance an environmental temperature particularly high.

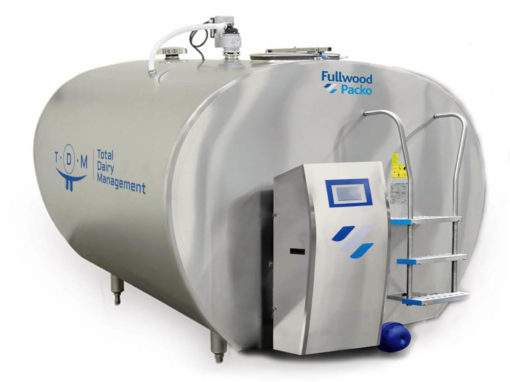

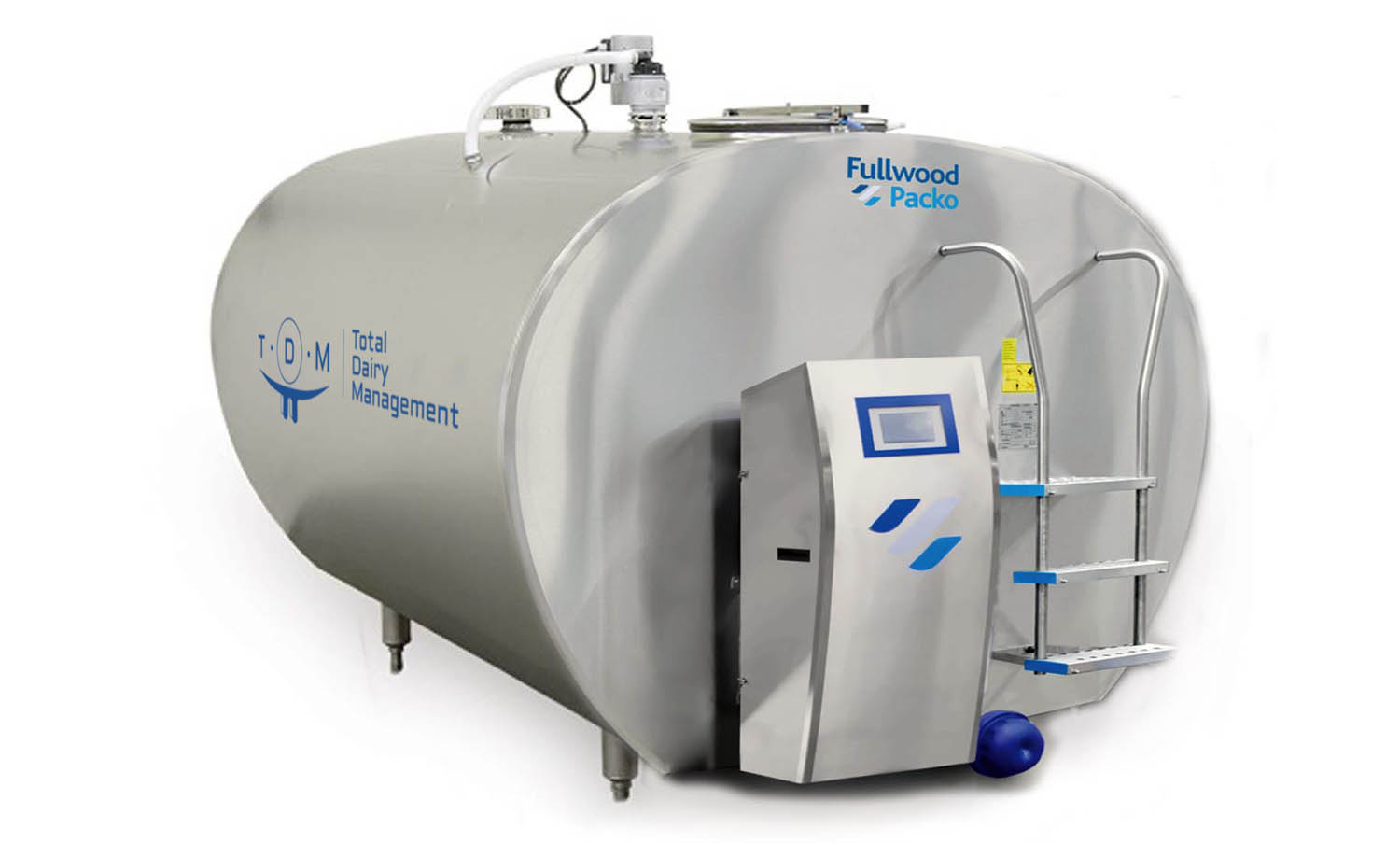

REM/DIB TANK

REM DIB



Description



Characteristics

Horizontal tank with laser welded efficient evaporator

Constructed of stainless steel 18/10 – AISI 304

Chassis with solid leg construction and adjustable feet (standard 2 % slope)

Flat manhole and swiveling cover with rubber seal

Detachable air vent

2 milk inlet openings, 80 mm (1 in the manhole cover, 1 at the back)

Tank outlet 80, self washing outlet with butterfly valve and road tanker connection NW 50 or 65 (other milk road tanker connections on request, e.g. SMS, DS, RJT or IDF)

”Self washing outlet” easy to upgrade (no welding). Increased second hand value.

All models are fitted with a stainless steel ladder

Tank conform EN 13732 standard – KEYMARK



Tank control and display

All electrical tank components 1 ~ 230V – 50Hz (other voltages / frequencies on request)

Milk temperature control with electronic operating unit iControl

Digital temperature indication with large LCD display

Deep cooling (1.9 °C)

Two adjustable set points (3.2 °C and 4.5 °C)

Full automatic logging of cooling, cleaning and errors



Cooling and agitation

All the benefits of cooling with ice water apply

A separate ice builder provides the ice water

Very fast cooling with no risk of freezing even the smallest quantities of milk

A high cooling capacity is guaranteed

The number of agitator motors depends on the volume of the tank (see table tank dimensions)



Cleaning

2 automatic dosage pumps for detergents

Automatic water level control for optimal filling and low water usage

High pressure dynamic Packo-ROTOJET system with spray balls in agitator blade(s)

Vertically mounted stainless steel cleaning pump, no risk of freezing

Pump power depends on number of agitators: 1 agitator: 1,1 kW, 1 ~ 230V 50Hz 2 agitators: 1,5 kW, 1 ~ 230V 50Hz



Available options

Warning messages sent by SMS

Timer for manual cooling and cleaning

Dosing cup(s) for detergents

ECO-WASH short cleaning

Tank adapted to AMS milking

OCULUS tank guard to monitor all tank functions

PACAP digital volume indication with LED display (see picture above)

Bottom filling

Flow meter alkaline detergent

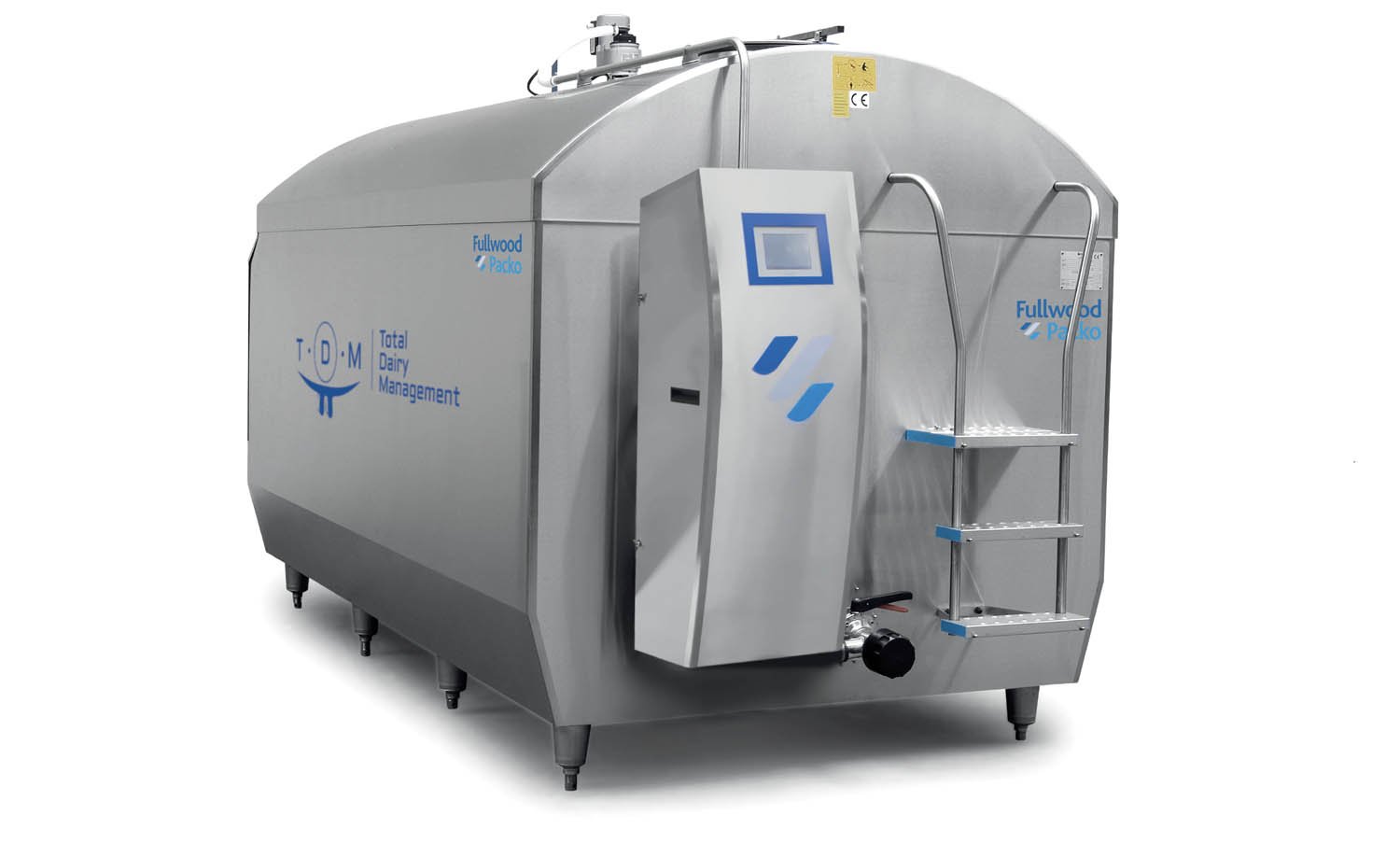

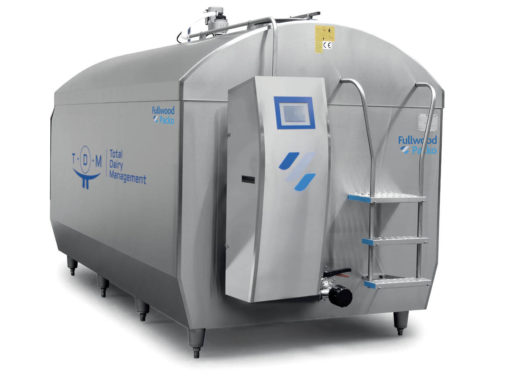

OM/IB TANK

OM IB

Description



Characteristics

Horizontal tank with space-saving, ergonomic design, easy to clean

Constructed of stainless steel 18/10 – AISI 304

Chassis with solid leg construction and adjustable feet (maximum 5 % slope)

One-piece cover (up to OM/IB 1800) mounted on pneumatic springs, allowing easy opening and closing Evaporator coils in the ice bank are made of seamless copper tubing.

CFC free polyurethane foam insulation

Standard NW 50 outlet with drain plug

The cooling tank is designed, manufactured and tested according to international standards

Tank conform EN 13732



Tank control and display

All electrical tank components 1 ~ 230V 50Hz (other voltages / frequencies on request)

Water tight switchbox with well dimensioned ON/ OFF switch and controls for the cooling unit

Milk temperature control with electronic operating unit PCV2-2

Digital temperature indication with large LED display

Two adjustable set points (3.2 °C and 4.5 °C)

Deep cooling possible



Cooling and agitation

As ice water is used as a cooling agent, it is impossible for even the smallest quantities of milk to freeze

A high cooling capacity is guaranteed

A correct designed agitator blade mixes also small amounts of milk

Cooling pipes pre-mounted with thermostatic expansion valve(s)

Cooling unit delivered separately

The continuous cold water supply in the ice bank means that the time required to cool down from 35°C to 10°C is approximately 50 % less compared to direct expansion

Energy and money saving by using off-peak electricity during the night, in addition low power demand of the cooling unit



Cleaning

The U-shape allows easy but thorough cleaning with a minimum of effort

The vessel always remains moist inside thanks to the ice bank underneath; this allows easier cleaning of the vessel



Available options

Time clock for use of night rate electricity

Cooling unit incorporated (up to OM/IB 1200)

Butterfly valve NW50

Individual calibration with laminated volume chart

Extra ice water pump

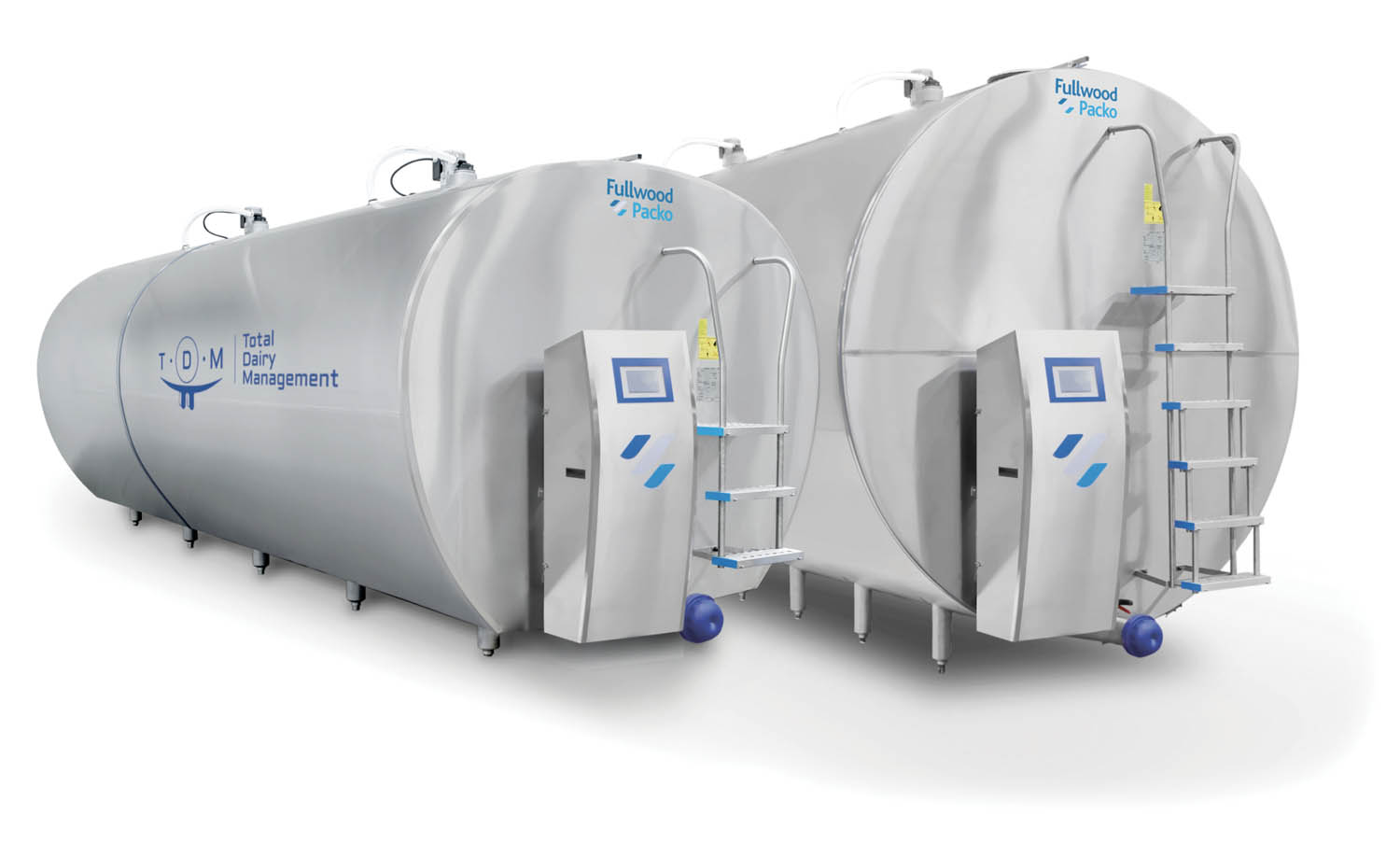

LEM/DIB TANK

LEM DIB

Description



Characteristics

Horizontal tank with laser welded efficient evaporator

Constructed of stainless steel 18/10 – AISI 304

Chassis with solid leg construction and adjustable feet (standard 2 % slope)

Flat manhole and swiveling cover with rubber seal

Detachable air vent

2 milk inlet openings, 80 mm (1 in the manhole cover, 1 at the back)

Tank outlet 80 mm, self-washing outlet with butterfly valve Ø 80 mm and road tanker connection NW 50, 65 or 80 (other milk road tanker connections on request, e.g. SMS, DS, RJT or IDF)

” Self-washing outlet” easy to upgrade (no welding). Increased second hand value.

All models have a stainless-steel ladder

Tank conform EN 13732 standard – KEYMARK



Tank control and display

All electrical tank components 1 ~ 230V – 50Hz (other voltages / frequencies on request)

Milk temperature control with iControl

Deep cooling (1.9 °C)

Two adjustable set points (3.2 °C and 4.5 °C)

Full automatic logging of cooling, agitation, cleaning and possible errors



Cooling and agitation

All the benefits of cooling with ice water apply

An integrate ice builder provides the ice water

Very fast cooling with no risk of freezing even the smallest quantities of milk

A high cooling capacity is guaranteed

The number of agitator motors depends on the volume of the tank



Cleaning

2 automatic dosing pumps for detergents

Automatic water level control for optimal filling and low water usage

High pressure dynamic Packo-ROTOJET system with spray balls in agitator blade(s)

Vertically mounted stainless-steel cleaning pump, no risk of freezing

Pump power depends on number of agitators:

1 agitator: 1.1 kW, 1 ~ 230V 50Hz

2 & 3 agitators: 1.5 kW, 1 ~ 230V 50Hz



Available options

Warning messages sent by SMS

Timer for manual cooling and cleaning

Dosing cup for detergents

ECO-WASH cleaning

Tank adapted to AMS milking

OCULUS tank guard to monitor all tank functions

PACAP digital volume indication with LED display

Bottom filling

Flow meter alkaline detergent

RM/IB TANK

Horizontal tank with integrated ice builder with an ice storage for minimum 1 milking
Construction completely made in stainless steel 18/10 – AISI 304
Tank outlet Ø 80 mm, self-cleaning outlet with butterfly valve Ø 80 mm and a truck connection Ø 80 / 65 or 50 mm
Insulated with polyurethane for an excellent insulation and extra strength of the tank
All models have a stainless-steel ladder

Cooling and cleaning
Thanks to the progressive iControl tank control unit the milk quality is assured
Fast cooling without any risk on freezing of even the smallest quantities of milk
Full automatic logging of the cooling, agitation, cleaning and potential alarms
Eco-wash integrated for less water use and saving time during cleaning (up to 50% savings)
Two automatic dosing pumps for detergents
Detection ‘nearly empty’ for two detergent containers
Dynamic Packo-ROTOJET ® cleaning system with spray balls built in the agitator paddle
Vertical mounted stainless-steel cleaning pump, no risk of freezing

Available options
Oculus tank guard
Tank executed for robotic milking
Bottom filling
Eco-drain (second drain valve)
Warning messages sent by SMS
PACAP digital volume measurement

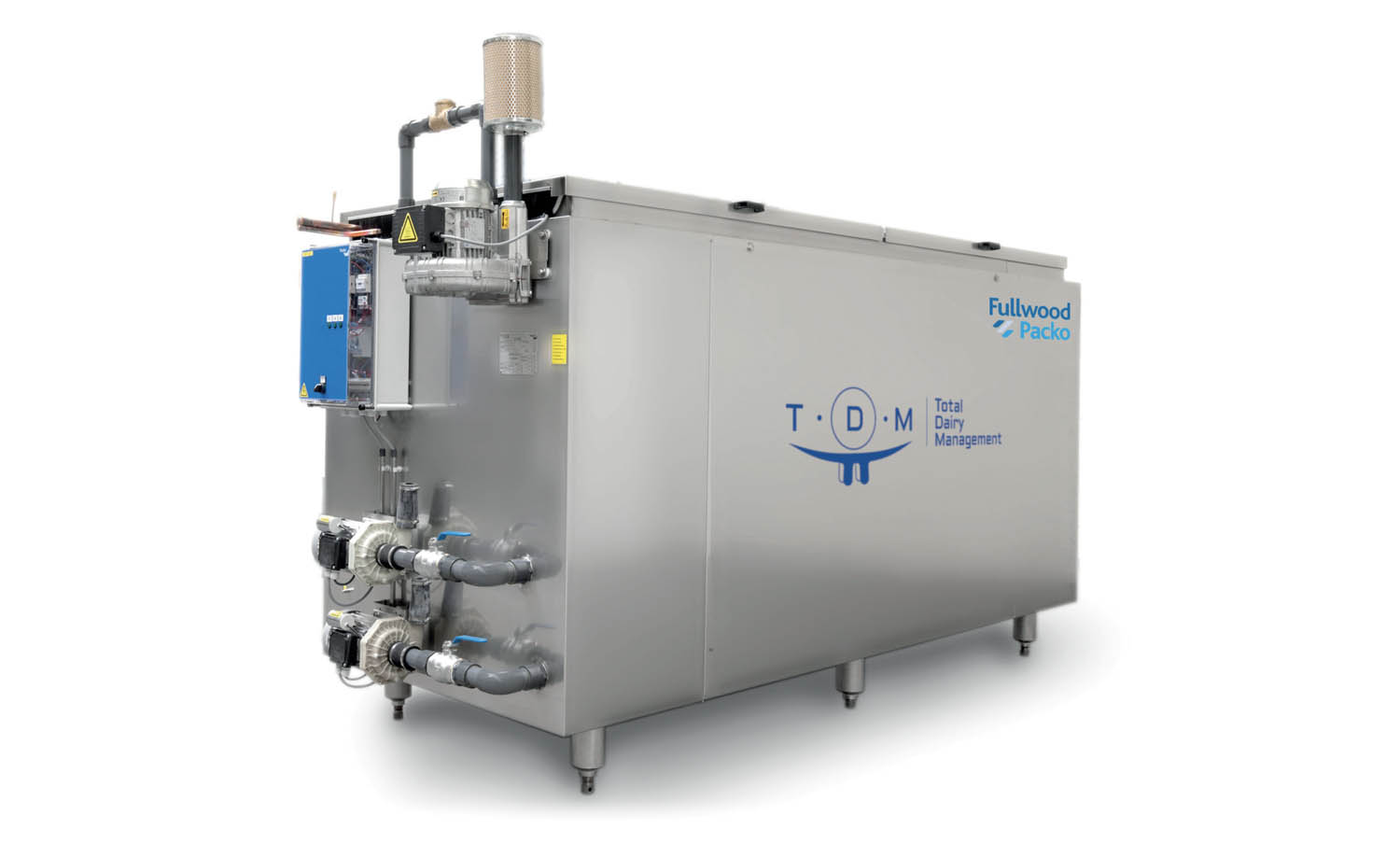

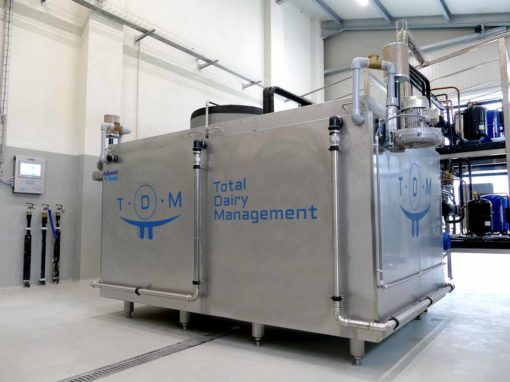

SEPARATE ICE BUILDER (PIB)

The control unit for the ice production separated from the tank is the solution to be applied with tanks not equipped with an independent ice builder system. Usually it is combined with instant milk cooling  of big dimensions , both with horizontal and vertical tanks.



The calculation of the capacity of the ice builder depends on the circumstances (ice formation during the night only or a presence of pre-cooling ).
